The land area of Guanyun School is about 28,171㎡, surrounded by urban renewal projects under construction, industrial areas, urban villages and Pingdi Park, forming a distinct landscape interface. The south of the base is Longgang Avenue, the west side is Puzai Road, a sub-trunk road, the north side is Xingping Road, and the east side is Guanyun Street, which will be shared with the residential area in the future. The north side of the base is an industrial area, the east side is a high-density urban renewal unit, the south side is an urban village, and the west side is a street office and Pingdi Park. The west side of the base is rich in landscape resources, and Pingdi Park is a place for the surrounding citizens to live and relax, bringing positive landscape resources to the project.
In the scheme，27 ordinary classrooms are intensively arranged in one teaching building, and the comprehensive building facing the street is equipped with libraries, art classrooms and administrative offices. The teaching building, comprehensive building and the kindergarten on the north side of the base together form a C-shaped building layout. The running track and related cultural and sports functions are arranged in this enclosed space to form an architectural space with rich spatial changes. The C-shaped building layout forms a semi-enclosed space, which is integrated with the Pingdi Park on the west side of the base, and also becomes the spatial extension of the green environment on the west side.
Functional organization & Community sharing
The school is mainly composed of the teaching building of Class 27, the comprehensive building along the street, and the sports building under the playground. The three are relatively independent and related to each other. The public corridor on the second floor connects the teaching building, the comprehensive building and the cultural and sports building in series, which not only provides wind and rain corridors for teachers and students, but also enriches the campus space. The south and west sides of the school along the street are arranged with public functions, not only to achieve time-sharing community sharing, but also to bridge the gaps in the block with a dynamic urban interface, connecting Pingdi Park with the urban space on the east and south sides of the site.
Urban green carpet & Natural green corridor
The comprehensive building forms a continuous green roof with the outdoor playground runway through the setback and green roof, creating an urban green carpet. While actively responding to the nature and urban texture, it also provides the teachers and students of the teaching building with the best landscape view and lighting. Meanwhile, the teaching building, the comprehensive building and the cultural and sports building jointly enclose the natural green corridor. The natural green corridor is not only a playground and learning classroom under the big tree, but also the core public space of the school, connecting the main entrance of the school, the teaching building, the comprehensive building and the cultural and sports building. The natural green corridor enriches the entire campus space through different courtyard designs. At the same time, the soft landscape design takes into account the southern climate. It is dominated by evergreen plants, dotted with some fruit trees and chrysanthemums, enriching the campus color, and bringing abundant landscape resources for teachers and students.
The three-dimensional cultural and sports building

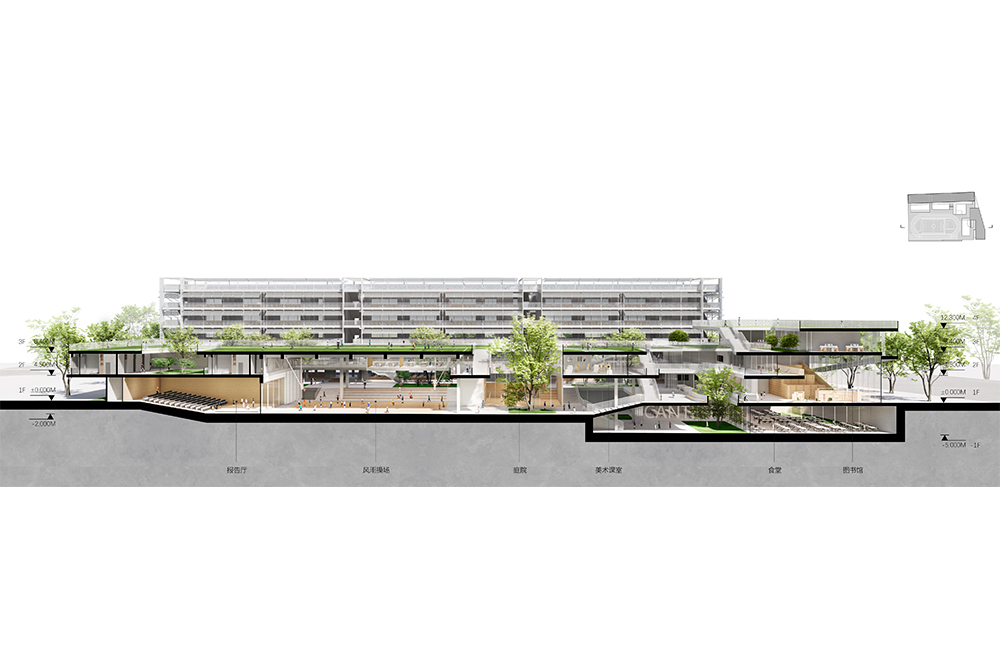

The three-dimensional cultural and sports building with complex functions is composed of three groups: multi-functional hall, wind and rain stadium and professional classrooms. The cultural and sports building is connected with the teaching building and the comprehensive building through stairs and corridors, which is convenient for the daily use of teachers and students, and also forms a smart space. The groups are interpenetrated with other overhead spaces, which is helpful for lighting and ventilation, and echoes the climate characteristics of the south. The cultural and sports building includes a variety of functional spaces that have relatively high requirements for clear height. Therefore，the cultural and sports building area is sunk by 2m to make a semi-underground space, making the wind and rain stadium and multi-functional hall double-height Reaching 10.4m, which provides sufficient height for the beam height and roof lowering plate in the long-span space. The height difference relationship also brings abundant space.
Modular teaching space
The teaching building adopts the design of standard modules, using the logic of combination, and consists of three unit buildings to form the junior high school and the primary school. Each unit building of the teaching building consists of four standard unit floors, which are divided into 12 unit modules. The standard unit floor corresponds to the composition of three ordinary classrooms in one grade, supplemented by teachers' offices and public toilets. The façade design continues the plane modulus to form a standard construction, and the perforated panels and keels form a light façade, which also has the effect of shading and ventilation.
The library along the street
The library is located in the complex building, located at the main entrance of the campus, and is arranged along the main road, making the library an important image of the school.The library has two floors. The first floor combines the sunken courtyard and the main road to open the bookshelves to form a large space for free study and reading.The second floor is a reading space with arranged bookshelves, which is connected to the playground and ordinary classrooms.
Project name: New construction project of Guanyun Nine-Year Consistent School in Pingdi Street
Project location: Pingdi Street, Longgang District, Shenzhen
Lead Architect: Guansheng Zeng、Wenguo Luo
Design Team: Guanyu He、Zijian Zhu、Kaitong Zhao、Zhao Lu、 Luolan Chen、Huihui Zhong
